KORAWALL Therm-V WVT

equipped with a touch LED thermostat

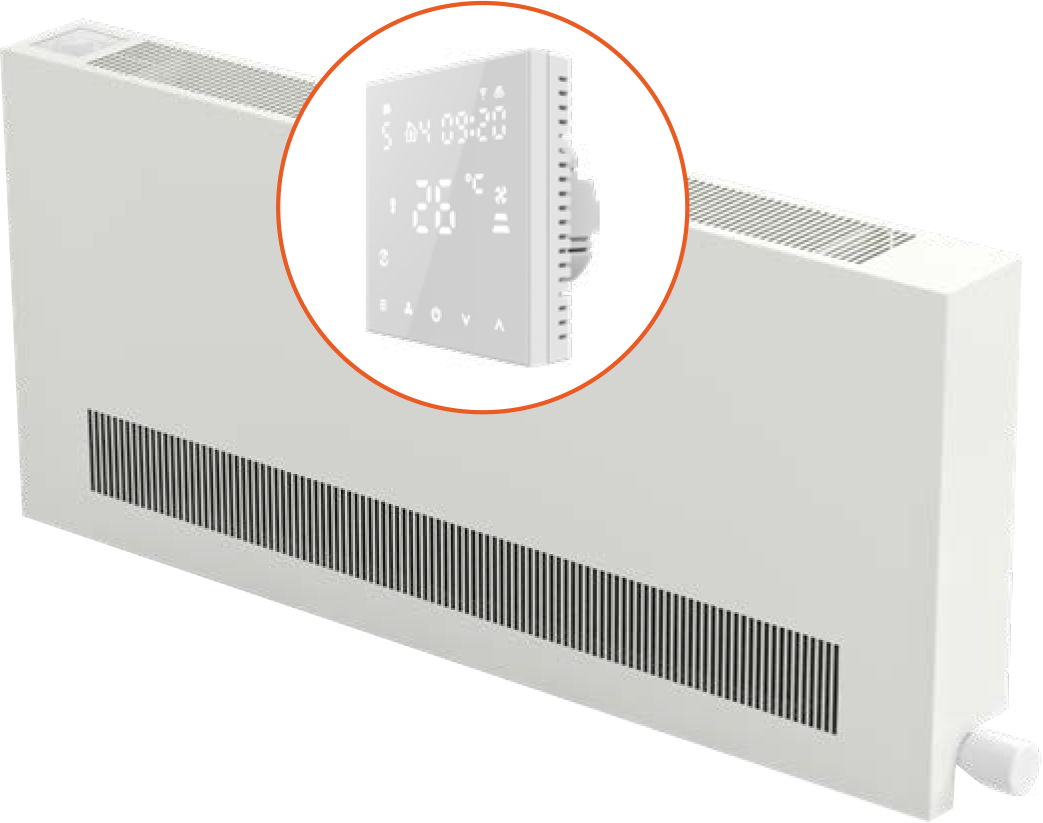

The wall-mounted convector KORAWALL Therm-V WVT is a modern heating unit designed for low-temperature heating with a 24 V DC power supply. It is equipped with a specially designed Al/Cu heat exchanger painted in RAL 9005 and low-energy quiet fans with speed control via a
0–10 V DC signal. The fan and temperature are controlled via the integrated electronic spatial thermostat HY607LIC with a touch LED display. The KORAWALL Therm-V WVT convector achieves high thermal performance even at low-temperature gradients and can be used for cooling in the non-condensing range. Thanks to its properties, it is ideal for a wide range of buildings – from new constructions and family homes to office buildings and renovations.

Технические характеристики Спрос

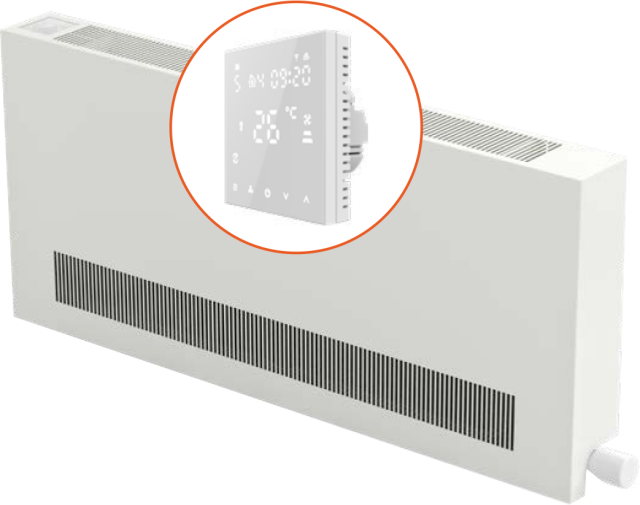

WVT-úvod
  • Легкое охлаждение
  • Принудительная конвекция
  • Низкое энергопотребление
KORAWALL  Therm-V WVT  galvanized steel RAL 9016
Height [mm] 450
Width [mm] 110
Length [mm] 600, 750, 1 000, 1 250, 1 500, 1 750, 2 000
Heat output [W] from 190 to 8 960 W
Cooling output [W] up to 1 419 W
Exchanger height [mm]  240
Exchanger width [mm] 60
Max. operating pressure [MPa] 1,2 MPa
Max. operating temperature [°C] 75 °C
Surface temperature [°C] 40 °C
Connection thread internal G ½"
Hydraulic connection  bottom (right-side or left-side)
info  The unit is designed for cooling in the non-condensation zone only, i.e. above the dew-point temperature. The unit is not equipped with condensate drainage.

Heat outputs [W] at t1/t2/ti / EN 16430.

Тепловая мощность

Глубина 450 / Ширина 110
Длина Уровень оборотов Тепловая мощность Эл. потребляемая мощность [Вт] Акустическое давление [дБ(A)] Акустическая мощн. [дБ(A)]
600 0 0 - -
600 1 2 23,2 31,2
600 2 3 32,3 40,3
600 3 6 40,8 48,8
750 0 0 - -
750 1 2 24,9 32,9
750 2 3 34 42
750 3 7 42,3 50,3
1000 0 0 - -
1000 1 3 26,3 34,3
1000 2 4 35,2 43,2
1000 3 10 43,9 51,9
1250 0 0 - -
1250 1 3 26,7 34,7
1250 2 5 35,3 43,3
1250 3 11 44,9 52,9
1500 0 0 - -
1500 1 4 28,7 36,7
1500 2 8 37,4 45,4
1500 3 19 46,4 54,4
1750 0 0 - -
1750 1 5 30,2 38,2
1750 2 9 38,9 46,9
1750 3 22 47,6 55,6
2000 0 0 - -
2000 1 5 30,5 38,5
2000 2 10 39 47
2000 3 23 48,2 56,2

Охлаждающая мощность

Глубина 450 / Ширина 110
Длина Уровень оборотов Охлаждающая мощность Эл. потребляемая мощность [Вт] Акустическое давление [дБ(A)] Акустическая мощн. [дБ(A)]
600 0 0 - -
600 1 2 23,2 31,2
600 2 3 32,3 40,3
600 3 6 40,8 48,8
750 0 0 - -
750 1 2 24,9 32,9
750 2 3 34 42
750 3 7 42,3 50,3
1000 0 0 - -
1000 1 3 26,3 34,3
1000 2 4 35,2 43,2
1000 3 10 43,9 51,9
1250 0 0 - -
1250 1 3 26,7 34,7
1250 2 5 35,3 43,3
1250 3 11 44,9 52,9
1500 0 0 - -
1500 1 4 28,7 36,7
1500 2 8 37,4 45,4
1500 3 19 46,4 54,4
1750 0 0 - -
1750 1 5 30,2 38,2
1750 2 9 38,9 46,9
1750 3 22 47,6 55,6
2000 0 0 - -
2000 1 5 30,5 38,5
2000 2 10 39 47
2000 3 23 48,2 56,2
Convector composition

HPS
 Therm WVT - složení

inforegulation elements are not included in the standard delivery package

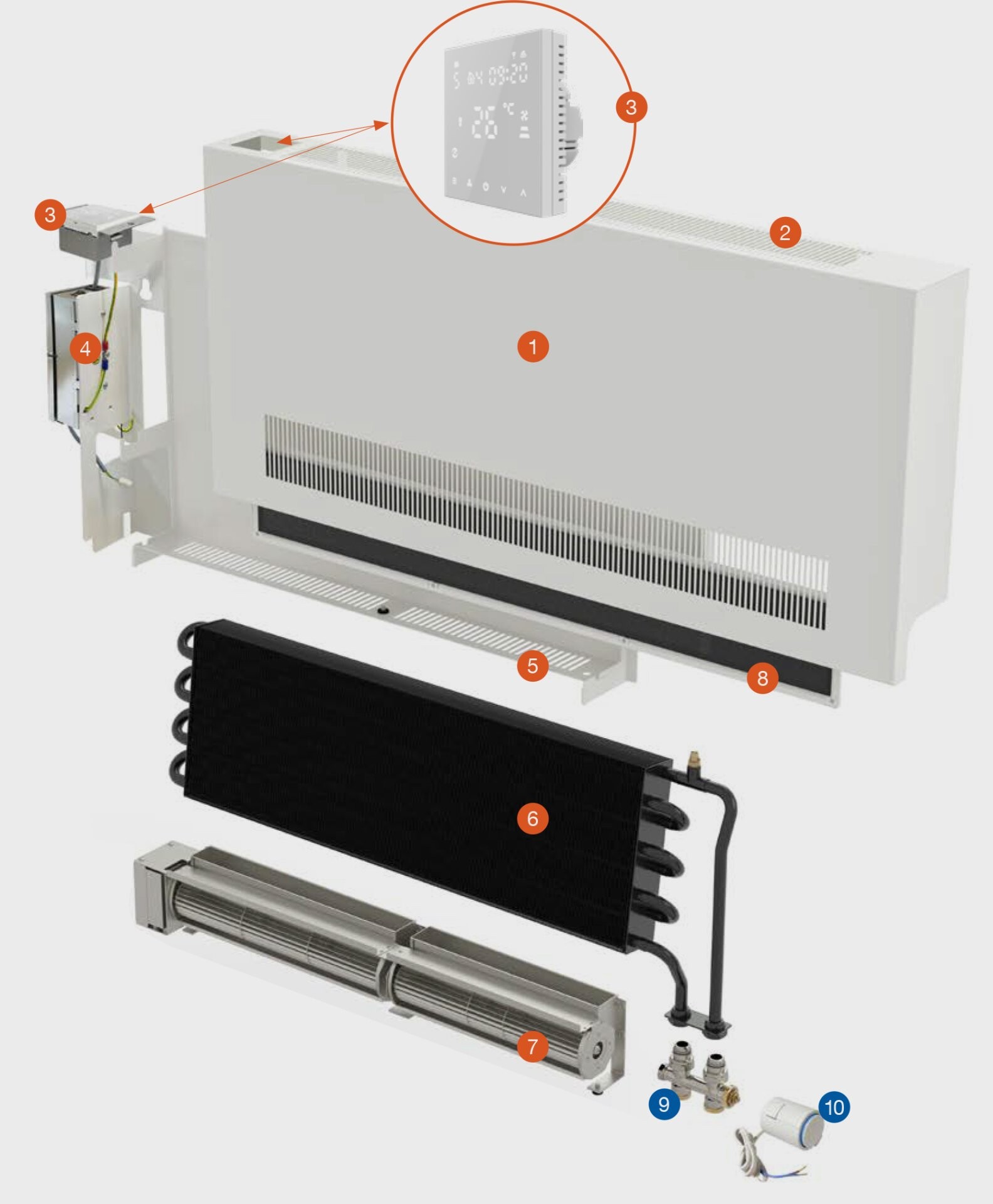

Convector composition
1 convector casing made of galvanized steel
2 safety cover grille, punched into the casing
3 touch LED thermostat
4power control
5 weight-bearing part for mounting the convector on the wall
6 Al/Cu heat exchanger lacquered RAL 9005
7 a set of low-energy EC fans 24 V DC
8 dust filter
9 LM thermostatic and control valve
10 thermoelectric actuator TEP 24

Standard contents
​ galvanized steel RAL 9016 white or RAL 9005 matt black casing
​ control electronics with a spatial thermostat with a touch LED display HY607LIC (white)
​ 230 V AC/24 V DC power supply
​ weight-bearing part for anchoring the unit on wall in the colour of casing Al/Cu heat exchanger lacquered in black RAL 9005 with low water content, bleed valve and uniquely shaped fins for higher heat output
​ 24 V DC tangential low-energy EC fan assembly
​ ambient temperature sensor and water temperature sensor located on the heat exchanger
 dust filter
​ installation instructions, installation template, durable packaging

Optional accessories
​ colour finish of the casing according to the colour shades of the RAL scale
​ thermoelectric actuator TEP 24 V DC
​ regulation fitting connection – LM valve – straight, elbow
​ spatial thermostat with a touch LED display HY607LIC (black)



infoThe unit is designed for cooling in the non-condensation zone only, i.e. above
the dew-point temperature. The unit is not equipped with condensate drainage.

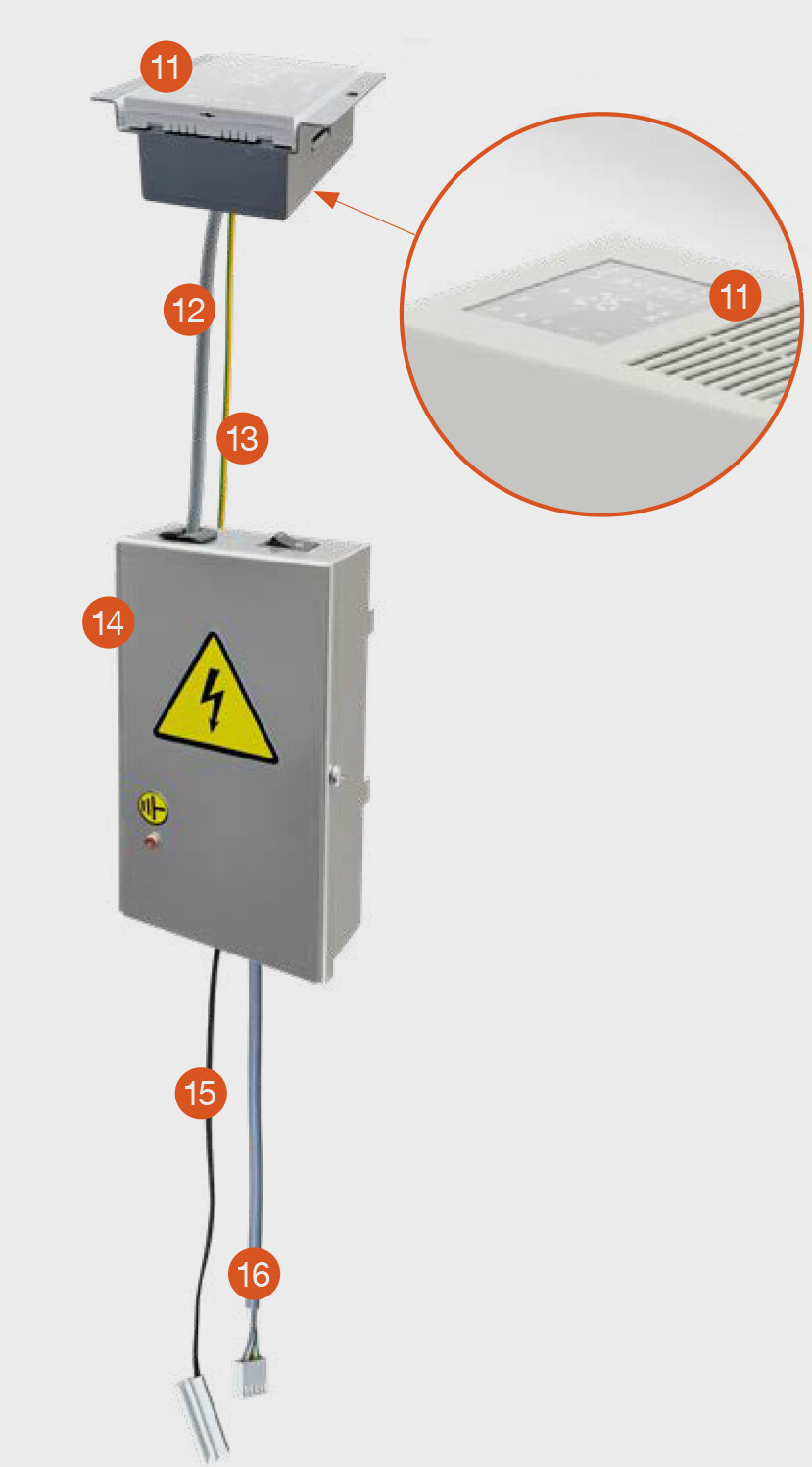

Power control composition
WVT-složení regulace



11 touch LED thermostat
12 connection for thermostat
13 grounding cableHY607LIC
14 control electronics
15 temp sensor (room)
16 fan control cable

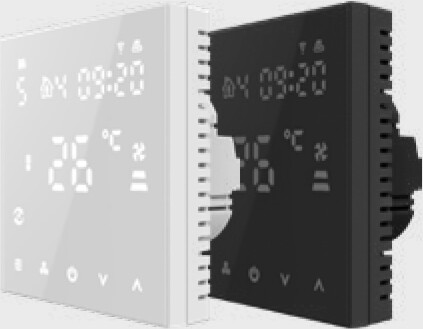

Integrated thermostat HY607LIC

The electronic spatial thermostat HY607LIC with a touch LED display regulates the fan and temperature. It offers a weekly program
with up to three time blocks, manual and automatic operating modes and automaticswitching between heating, cooling, and
ventilation modes. Control is possible not only directly on the display but also remotely via a Wi-Fi application for smartphones
with Android and iOS operating systems. For security, the control can be locked with a PIN code.

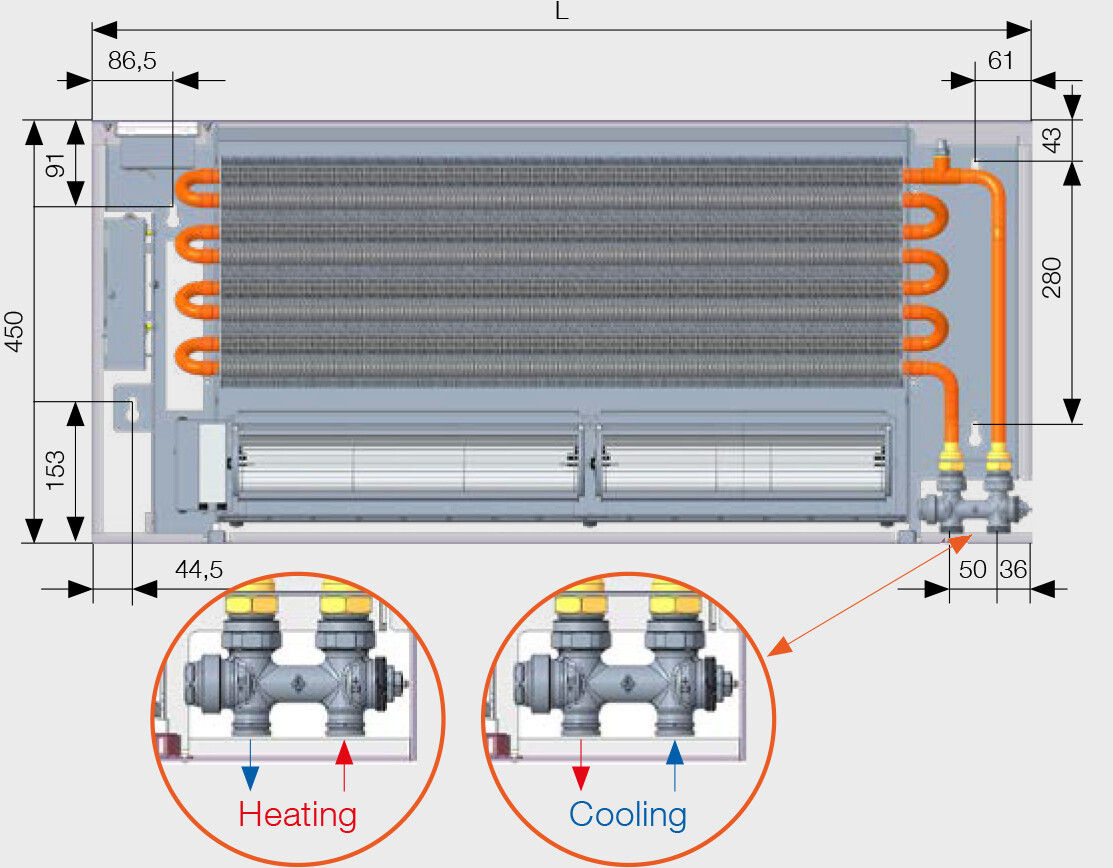

KORAWALL Therm-V WVT – height 450 mm/width 110 mm

KORAWALL bokorys   WVO_nárysHPS


 Measurements shown in mm.

CONVECTOR ASSEMBLY

Anchoring diagram

EN_WVT_assambly
Construction part
  • We recommend placing the wall-mounted unit on the perimeter wall, 100 mm above the floor.
  • We recommend equipping the convector with the LM regulation valve with a higher flow rate.
  • The water inlet must always be connected to the pipe leading to the upper part of the convector and also attach the LM regulation fitting.
  • The heat exchanger and casing must be well protected against contamination. Heating units must be regularly serviced; heat exchangers and fans cleaned.
  • The unit is installed on a wall using the rear weight-bearing part. We recommend to check the correct positioning of the heat exchanger with fittings and the casing prior to connecting the heat exchanger to the heating system. .

  • HPS​Do not forget about power source nearby installation.

info  The unit is designed for cooling in the non-condensation zone only, i.e. above the dew-point temperature. The unit is not equipped with condensate drainage

ORDERING CODES

Example order code: WVT-125/45/11-V5SPSP-10-RT

KORAWALL Therm-V WVT wall-mounted convector, length 125 cm, height 45 cm, width 11 cm, with reversible heat-exchanger lacquered in RAL 9005, the colour of the casing and perforated grille – white RAL 9016, bottom right connection with standard regulation.

KORAWALL
Ventilator
Type

Length/Height/Width [cm]

Exchanger
type
Exchanger
colour
Casing
material
Grille
type
Connection
type
Connection
side

Colour
code

Regulation
W
V
T
-
125/45/11
-
V
5
S
P
S
P
-
10
-
RT


Therm-V



reversible
black
RAL 9005
steel
perforated
bottom
P - right
L - left

10 RAL 9016
39 matt black RAL 9005
** RAL - Code
99 other RAL colour


24 V DC
regulation
